Connectors: Overview

A connector reads or writes one kind of storage for you. You write format: s3 (or jdbc, delta, ...) on an input or output in config.yaml; the connector does the reading before your transform runs, and the writing after. Your code only sees data frames. This page lists the connectors and links to each one's settings.

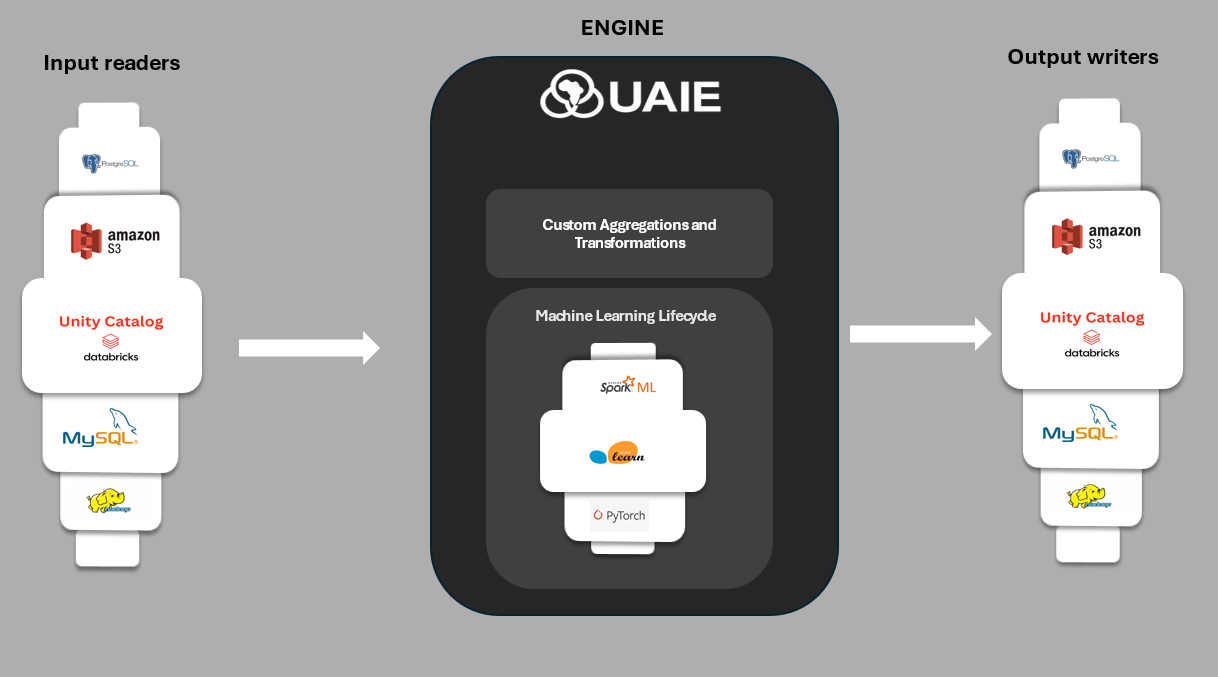

inputs: are read by the connector named in format:, your transform changes the data, outputs: are written the same way

Built-in connectors

Format Reader Writer Notes
hive Yes Yes Hive Metastore via Spark SQL
jdbc Yes Yes PostgreSQL, MySQL, Oracle, SQL Server, ...
unity Yes Yes Databricks Unity Catalog (3-part names)
s3 Yes Yes S3, ADLS, GCS, HDFS, local: any path. Also runs on the pandas backend
delta Yes Yes Delta Lake by path or table name; time travel
binary Yes No Raw files (PDFs, images). Spark's binaryFile source is read-only, so format: binary in CONFIG.outputs is rejected at config load
rest_api Yes Yes HTTP REST with auth, pagination, retry. Also runs on the pandas backend

s3 and rest_api work on every shipped backend (spark, databricks, pandas). The others need Spark. ubunye validate --backend pandas says before a run when a task uses a connector its backend cannot serve.

Which connectors are installed

ubunye plugins

lists every connector this machine can use: the built-in ones above, plus any installed from another package. An unknown format: is refused by ubunye validate, with that list. How connectors are found and registered (entry points) is in Writing a Plugin.

Connector config structure

Every connector is declared as an IOConfig block:

CONFIG:
  inputs:
    <name>:
      format: <format>          # selects the connector
      # connector-specific fields below
      options: {}               # raw Spark reader/writer options

  outputs:
    <name>:
      format: <format>
      mode: append              # the default; see Write modes
      options: {}

Connector-specific keys (e.g. auth, pagination) are passed to the connector unchanged. Every built-in connector declares the keys it reads, so a key it does not read is refused by ubunye validate. See Inputs & Outputs and its write modes.

Writing your own connector

See Writing a Plugin for a step-by-step guide to building a custom Reader or Writer and registering it with the entry point system.
